Access Oracle APEX , Oracle REST Data Services, and Built-in Database Tools Using a Vanity URL

By default, access to Oracle APEX apps, REST endpoints and built-in database tools on Autonomous AI Database is through the oraclecloudapps.com domain name. You may optionally configure a vanity URL (ie. a custom domain) that is more relevant for your organization or project.

For this, you must first Acquire your Preferred Domain Name and matching SSL certificate from a vendor of your choice.

Enable a Vanity URL on your Elastic Pool Member Database

With a registered domain name and certificate available, for a database in an elastic pool, you can easily enable a vanity URL on your Autonomous AI Database and configure a vanity URL custom domain for your Autonomous AI Database instance using an API Gateway.

Note:

Vanity URLs are supported by OCI API gateways that use HTTP endpoints, but not by TCP-based endpoints such as MongoDB and SQLNET.
The Oracle Machine Language (OML) tool does not support vanity URL.

Register your API Gateway with your DNS

This chapter highlights the importance of setting up Oracle Cloud Infrastructure (OCI) Domain Name System (DNS) in configuring a vanity URL.

Configuring the DNS to point to an Oracle Cloud Infrastructure (OCI) API Gateway is necessary to enable a vanity URL because DNS is the system that translates the user-friendly custom domain name (e.g., api.mycompany.com) into the IP address of the actual OCI API Gateway endpoint. Without configuring DNS, the custom domain won’t resolve to the OCI API Gateway’s public IP, and users would not be able to reach your OCI APIs using the vanity URL.

The DNS Setup involves three main components:

Domain ownership and verification:

A vanity domain requires proof of ownership. The domain must be registered with an authorized domain registrar, and you must have administrative control to manage its DNS records. This ensures only legitimate owners can map their custom domain (for example, examplehost.com) to the OCI API Gateway endpoint.
TLS certificates for HTTPS:

As OCI API Gateways are secured with Transport Layer Security (TLS), a TLS certificate is mandatory. If you use Oracle’s default (auto generated) domain, Oracle automatically provisions and maintains a certificate. However, when using a custom domain, you must provide your own TLS certificate obtained from a trusted Certificate Authority (CA). This certificate binds your vanity domain to the gateway, enabling encrypted communication and ensuring client trust.

There are two approaches:
- Use an Oracle-managed certificate via the OCI Certificates service (self-issued or imported from a CA).
- Upload your own custom certificate, along with the private key and any intermediate certificates.
DNS record configuration:

Once the OCI API Gateway and TLS certificate are set up, you must configure DNS so the custom domain resolves to the gateway’s public endpoint.

Without this process, inbound requests to your custom domain would not reach the gateway.

The DNS is like a bridge between your vanity domain and the underlying OCI API Gateway infrastructure. For your vanity URL to be reachable and functional, you must point your DNS records to the API Gateway.

Prerequisites

You must own a registered domain name (whether managed in OCI DNS or an external DNS provider) before configuration begins.
You must procure a TLS certificate for your custom domain either from a third-party Certificate Authority (CA) or via OCI Certificates Service.

Steps to configure DNS for OCI API Gateway

To configure DNS to point to an OCI API Gateway, you must perform the following steps that involve domain ownership, TLS certificates and DNS record configuration.

Create and Upload a Custom TLS Certificate:
- Generate a Certificate Signing Request (CSR) for your domain, including your fully qualified domain name (FQDN).
- Use either the OCI Certificates Service or a third-party CA to issue the certificate.
- Import this certificate and private key into OCI as a Certificate resource.
Refer to Setting Up Custom Domains and TLS Certificates for more details.
Create an API Gateway in OCI:
- Navigate to Developer Services > API Gateway in OCI Console.
- Create a gateway with your TLS certificates at appropriate public Subnet of VCN.
After creation, keep a note of the API Gateway OCID ID which OCI generates automatically.

Refer to Creating an API Gateway for more details.
Configure DNS Records for Your Domain:
- Go to your DNS management system (either OCI DNS service or an external DNS provider such as Route 53) to configure your custom DNS mapping to OCI API Gateway public IP address.
This ensures incoming traffic for your custom domain resolves to your OCI API Gateway Public IP address.

After DNS propagation, you can then access the vanity URL (https://examplehost.com) and confirm it routes to your OCI API Gateway Public IP address.

You can also configure a vanity URL for Autonomous AI Database from the Oracle Cloud Infrastructure Service Console for Elastic Pool users.

Enable Resource Principal to Access Oracle Cloud Infrastructure Resources

Perform the following steps to enable resource principal on Autonomous AI Database. This allows the database to authenticate and access OCI resources securely.

As a prerequisite, configure dynamic groups and policies. See Perform Prerequisites to Use Resource Principal with Autonomous AI Database for more information.

To enable a resource principal on Autonomous AI Database:

As the ADMIN user, enable resource principal for the Autonomous AI Database instance.

For example:
```
EXEC DBMS_CLOUD_ADMIN.ENABLE_RESOURCE_PRINCIPAL();
```
See ENABLE_RESOURCE_PRINCIPAL Procedure for more information.

This creates the credential OCI$RESOURCE_PRINCIPAL.
(Optional) This step is only required if you want to grant access to the resource principal credential to a database user other than the ADMIN user. As the ADMIN user, enable resource principal for a specified database user.

For example:
```
EXEC DBMS_CLOUD_ADMIN.ENABLE_RESOURCE_PRINCIPAL(username => 'adb_user');
```
This grants the user adb_user access to the credential OCI$RESOURCE_PRINCIPAL.

If you want the specified user to have privileges to enable resource principal for other users, set the grant_option parameter to TRUE.

For example:
```
BEGIN
DBMS_CLOUD_ADMIN.ENABLE_RESOURCE_PRINCIPAL(
     username => 'adb_user',
     grant_option => TRUE);
END;
/
```
After you run this command, adb_user can enable resource principal for another user. For example, if you connect as adb_user, you can run the following command:
```
EXEC DBMS_CLOUD_ADMIN.ENABLE_RESOURCE_PRINCIPAL(username => 'adb_user2');
```
See ENABLE_RESOURCE_PRINCIPAL Procedure for more information.

Verify that the resource principal credential is enabled.

For example, as the ADMIN user query the view DBA_CREDENTIALS:

SELECT owner, credential_name FROM dba_credentials
        WHERE credential_name = 'OCI$RESOURCE_PRINCIPAL' AND owner = 'ADMIN';

OWNER  CREDENTIAL_NAME

-----  ----------------------
ADMIN  OCI$RESOURCE_PRINCIPAL

For example, as a non-ADMIN user query the view ALL_TAB_PRIVS:

SELECT grantee, table_name, grantor FROM ALL_TAB_PRIVS
   WHERE grantee = 'ADB_USER'
        AND table_name = 'OCI$RESOURCE_PRINCIPAL'
        AND table_schema = 'ADMIN';

GRANTEE   TABLE_NAME                GRANTOR

--------- -----------------------   -------------
ADB_USER  OCI$RESOURCE_PRINCIPAL    ADMIN

Enabling the resource principal on an Autonomous AI Database instance is one-time operation. You do not need to enable the resource principal again, unless you run DBMS_CLOUD_ADMIN.DISABLE_RESOURCE_PRINCIPAL to disable the resource principal.

IAM Policy to Setup a Vanity URL

Before you configure a vanity URL for your Autonomous AI Database instance on your Elastic Pool Member Database you must grant permissions to database to manage the OCI API Gateway deployments

To create access policies on Oracle Cloud Infrastructure (OCI) as a tenancy administrator, follow these steps:

Open the navigation menu and click Identity & Security. Under Identity, click Policies.
Click Create Policy.
In the Create Policy window, enter a name (for example, IntegrationGroupPolicy) and a description.
In the Policy Builder, select Show manual editor and enter the required policy statements.

The typical Syntax to allow a group to manage API Gateway deployments is:
- Allow dynamic-group id <dynamic group ocid> to manage api-deployments in compartment <compartment name>
- Allow dynamic-group id <dynamic group ocid> to use api-gateways in compartment <compartment name>
Example:
- Allow dynamic-group id ocid1.dynamicgroup.oc1..aaaaaaaaaaaaaaaaaa1111ex3aztuwucyjiqoclhpuflmlncmkwtqsjwlmmq to manage api-deployments in compartment adwtoolsqa
- Allow dynamic-group id ocid1.dynamicgroup.oc1..aaaaaaaaaaaaaaaaaa1111ex3aztuwucyjiqoclhpuflmlncmkwtqsjwlmmq to use api-gateways in compartment adwtoolsqa
This policy statement allows the ocid1.dynamicgroup.oc1..aaaaaaaaaaaaaaaaaa1111ex3aztuwucyjiqoclhpuflmlncmkwtqsjwlmmq group in the admin domain to manage and use OCI API Gateway Deployments in compartment adwtoolsqa.
Note:
- When defining policy statements, you can specify either verbs (as used in these steps) or permissions (typically used by power users).
- To learn more about policies, see: How Policies Work and Policy Reference in the Oracle Cloud Infrastructure documentation.
Review and create the policy.

The policy statements are validated and syntax errors are displayed.

Enable a Vanity URL on your Elastic Pool Member Database

Follow these instructions to configure a vanity URL for your Autonomous AI Database instance using Oracle Cloud Infrastructure Service Console.

On the Autonomous AI Database Details page, from the More actions drop-down list, select Enable vanity URL.
On the Configure vanity URL for database tools dialog, select Use vanity URL.
Select the Compartment of your OCI API Gateway.
Select the API Gateway from the list of OCI API Gateway names you have access to.
Specify the fully qualified custom domain name that should appear in the URL and is registered with DNS.

For example, enter examplehost.com.

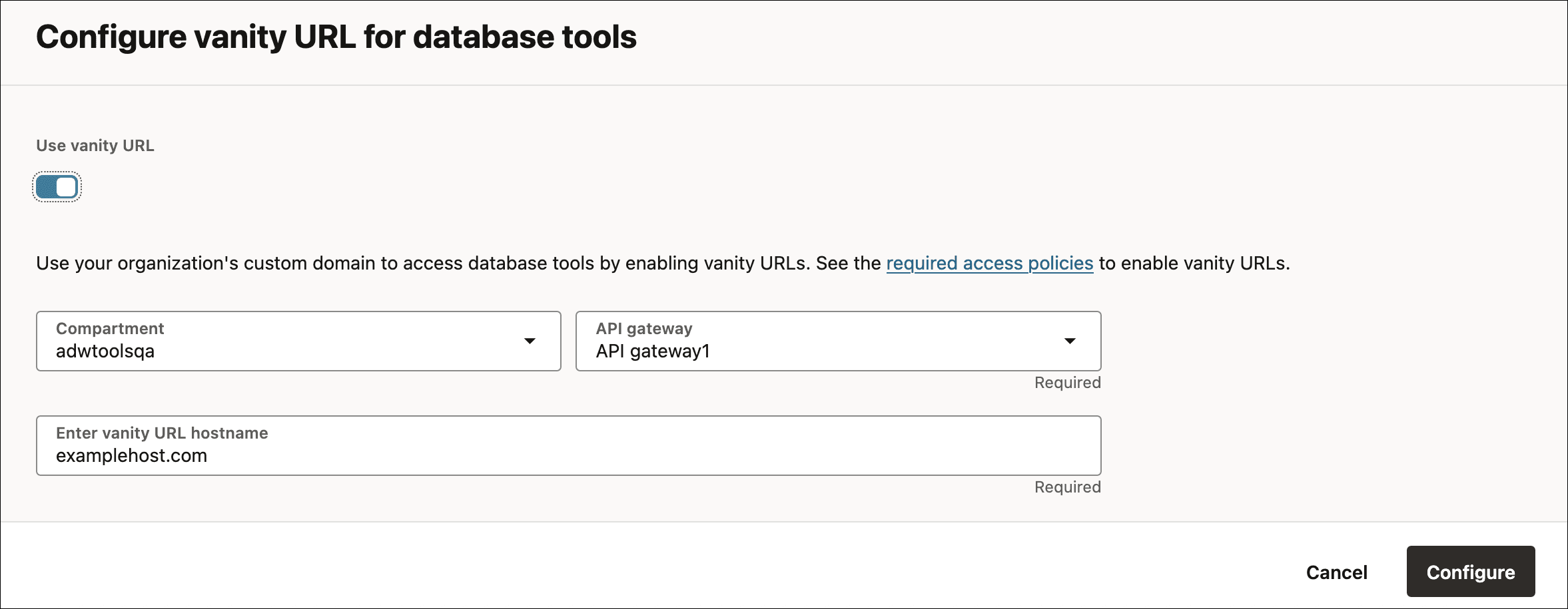

Description of the illustration adb_configure_vanity_url.png

Click Configure.

After successful configuration, the Tool Configuration tab on the Autonomous AI Database Details page displays a new field named Vanity URL, along with additional Vanity URL fields under Oracle APEX and Database Actions.

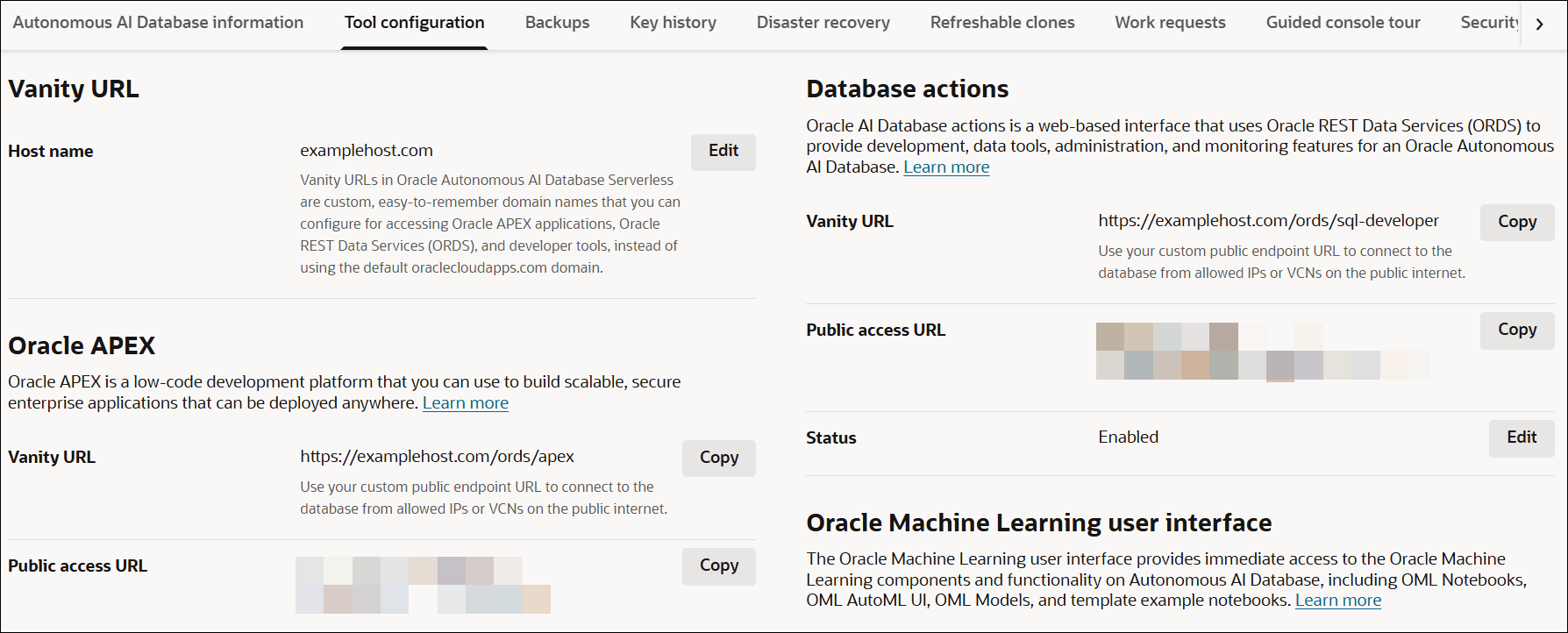

Description of the illustration adb-vanity-url-tool-configuration.png

You will be able to access end-user applications and developer tools such as Oracle APEX and Database Actions using your custom domain name or Public/Private access URL based on your database network access.

Enable a Vanity URL on your Non-Elastic Pool Database using a Reverse Proxy

For a database that is not part of an elastic pool, you may manually deploy an Oracle Cloud Infrastructure Load Balancer in your Virtual Cloud Network (VCN) using your Autonomous AI Database as the back-end.

Your Autonomous AI Database instance must be configured with a private endpoint in the same VCN. See Configure Network Access with Private Endpoints for more information.

Refer to the following posts for details on how to enable a vanity URL for a database outside of an elastic pool:
